Rack Descender: Essential Guide for Safe Climbing Techniques
When you watch videos of cavers descending into deep holes or climbers rappelling down cliffs, you might notice a device that looks like a shiny ladder or a strange metal rack attached to their harness. This tool is called a rack descender. It is a simple but essential device for vertical rope activities.
Whether you are a caver, rescue worker, or rope access technician, understanding how the rack descender works and why it is preferred in certain situations can make your vertical journeys safer and more controlled.
This article will guide you through the world of rack descenders. We’ll explain their design, usage, benefits, and limitations. You’ll learn practical tips, see comparisons with other descenders, and discover why the rack descender is trusted for long, demanding descents.

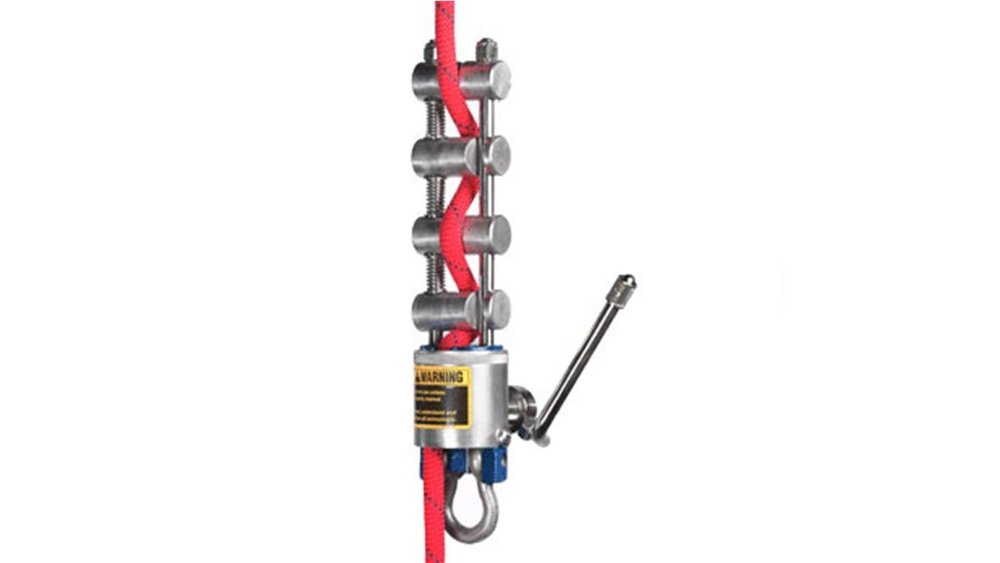

What Is A Rack Descender?
A rack descender is a mechanical device used to control your speed while descending a rope. It is mostly used in caving, canyoneering, and rope rescue. The rack descender consists of a frame (called the rack) and several bars, usually made of stainless steel or aluminum.
These bars can move or rotate, allowing the user to thread the rope in a way that creates friction. The friction slows the descent, giving the user control.
Unlike simpler descenders, like the figure-eight or ATC, the rack is designed for heavy-duty, long descents. It is especially useful on thick ropes or when you need precise speed control.
Design And Construction
The rack descender’s design is unique. Its shape and materials make it strong and versatile.
Main Parts Of A Rack Descender
- Frame: The backbone of the device. Usually U-shaped, made from steel or aluminum.
- Bars: Several (usually 5-7) metal bars are attached to the frame. Bars can be straight or bent and are often removable.
- Pivot Points: Bars are mounted on pivot points, allowing them to swing out for easier rope loading.
- Attachment Hole: A hole or slot at the top for connecting the descender to your harness via a carabiner.
Materials Used
Most rack descenders are made from stainless steel for durability and resistance to corrosion, especially important in wet caves. Some bars may be aluminum, which is lighter but wears faster.
Sizes And Types
Rack descenders come in various sizes. The standard size fits most caving and rescue ropes (9–12 mm diameter). Mini racks are available for lighter loads or thinner ropes.
| Type | Length | Number of Bars | Best Use |
|---|---|---|---|
| Standard Rack | 10–12 inches | 6–7 | Caving, Rescue |
| Mini Rack | 7–9 inches | 4–5 | Canyoneering, Recreational |
| Extended Rack | 12+ inches | 7–8 | Heavy Loads, Thick Rope |
How Rack Descenders Work
The rack descender creates friction by forcing the rope to bend around several metal bars. As you descend, the friction slows your movement. You can adjust the friction and speed by changing how many bars the rope touches.
Rope Threading And Friction Control
To use a rack descender:
- Swing out the bars.
- Thread the rope through the bars, following a specific pattern.
- Swing bars back into place.
More bars = more friction = slower descent. Fewer bars = less friction = faster descent. You can change the rope’s path on the go, even while descending.
Dynamic Adjustment
A major advantage is dynamic adjustment. If you want to go slower, you can add a bar or wrap the rope around more bars. If you want to speed up, you can remove a bar. This flexibility is not available on most other descenders.
Heat Dissipation
Long descents create heat from friction. The rack descender’s design spreads this heat over many bars, reducing risk of rope damage. This is critical in deep caves or rescue missions where descents can be hundreds of feet.
Where Rack Descenders Are Used
Rack descenders are common in activities that involve vertical rope work:
- Caving (spelunking): Essential for deep cave systems, especially where descents are long and ropes are thick.
- Rescue operations: Used by firemen and rescue teams for controlled descents.
- Industrial rope access: Useful for maintenance workers on tall buildings or bridges.
- Canyoneering: Sometimes used for rappelling in canyons, though not as common as in caving.
Rack descenders are rare in sport climbing, as climbs are shorter and simpler devices are preferred.
Why Choose A Rack Descender?
People choose rack descenders for several reasons. Let’s look at their main benefits:
Advantages
- Precise speed control: You can adjust friction instantly while descending.
- Handles long descents: Works well on deep drops, even hundreds of feet.
- Rope compatibility: Handles thick, wet, or dirty ropes better than most descenders.
- Heat management: Reduces risk of rope melting or burning.
- Durability: Stainless steel racks last many years, even in harsh environments.
Example: Caving In Mammoth Cave
In the Mammoth Cave system in Kentucky, cavers often face drops of 300 feet or more. Using a rack descender, they can descend safely, adjust speed, and avoid rope overheating.
How To Use A Rack Descender Safely
Proper use is crucial. Here’s a step-by-step guide for beginners:
- Check the rack: Ensure all bars are secure and not worn out.
- Attach to harness: Clip the rack to your harness using a locking carabiner.
- Thread the rope: Swing open bars, thread the rope as shown in the manufacturer’s diagram.
- Close the bars: Swing bars back into place. Make sure rope is seated properly.
- Test friction: Gently pull on the rope to check friction before starting descent.
- Begin descent: Lean back, control speed with your brake hand.
- Adjust on the fly: If needed, add or remove bars to change friction.
Common Mistakes
- Improper rope threading: Always follow the correct pattern. Wrong threading can cause loss of control.
- Too few bars: Using fewer bars than needed may lead to excessive speed.
- Loose bars: Check bars regularly for wear and tightness.
- Not checking rope condition: Dirty, wet, or damaged rope can affect friction.
Practical Tips
- Practice on short drops before attempting deep descents.
- Always wear gloves to protect your hands from friction and heat.
- Inspect your rack descender and rope before every use.
Rack Descender Vs. Other Descenders
Let’s compare the rack descender with other common devices.
| Device | Friction Control | Heat Management | Best For | Weight |
|---|---|---|---|---|
| Rack Descender | Adjustable | Excellent | Long descents | Medium |
| Figure Eight | Fixed | Poor | Short drops | Light |
| ATC (Air Traffic Controller) | Fixed | Moderate | Climbing | Light |
| Petzl Stop | Adjustable (with lever) | Good | Caving | Medium |
Key Differences
- Rack descender allows on-the-fly friction adjustment. Most other devices do not.
- Heat dissipation is much better in racks. Figure-eight descenders can damage ropes on long drops.
- Weight: Racks are heavier, but the safety and control are worth it for deep descents.
Non-obvious Insight
Many beginners do not realize that using a rack descender on a wet or muddy rope often gives better control than other devices. The multiple bars grab the rope even when it is slippery, reducing the risk of a dangerous fast descent.
Choosing The Right Rack Descender
Picking the best rack descender depends on your activity and needs.
Factors To Consider
- Rope size: Match the rack to your rope diameter (most racks support 9–12 mm).
- Number of bars: More bars = more friction, better for heavier loads.
- Bar shape: Bent bars offer smoother rope movement, straight bars are easier to clean.
- Material: Stainless steel is best for durability; aluminum is lighter but wears faster.
- Weight: If you need to carry gear over long distances, consider lighter racks.
Comparison Of Rack Descenders
Here’s a look at three popular models:
| Brand | Material | Number of Bars | Weight (oz) | Price (USD) |
|---|---|---|---|---|
| Petzl Rack | Stainless Steel | 6 | 20 | 95 |
| CMC Rescue Rack | Aluminum/Bent Bars | 7 | 18 | 120 |
| PMI Mini Rack | Aluminum | 5 | 13 | 65 |
Common Buyer Mistakes
- Choosing racks with too few bars for heavy loads.
- Ignoring bar shape and material, leading to faster wear.
- Buying racks not compatible with their rope size.
Care And Maintenance
A rack descender can last years if cared for properly.
Cleaning
After each use, especially in muddy or wet environments, rinse the rack with clean water. Dry thoroughly to prevent rust.
Inspection
Check for:
- Bar wear: Look for grooves or sharp edges.
- Frame cracks: Even tiny cracks can be dangerous.
- Loose bolts/pins: Make sure all moving parts are secure.
Replace worn bars immediately. Do not use a rack with damaged parts.
Storage
Keep your rack descender in a dry, cool place. Avoid storing it with wet ropes or gear.
Pro Tip
Most beginners overlook bar wear. Even small grooves can increase rope abrasion and risk. Inspect bars carefully before every trip.
Advanced Techniques
Experienced users can do more with a rack descender:
- Double rope descent: Thread both ropes through the bars for extra friction.
- Lock-off: Stop mid-rope by wrapping the rope around additional bars.
- Rescue scenarios: Use racks for lowering heavy loads or people.
These techniques require practice and training. Never attempt advanced maneuvers without proper guidance.
Rack Descender In Rescue And Industrial Work
Rack descenders are trusted in rescue missions and industrial rope access.
Rescue Example
During a cave rescue in France, rescuers used rack descenders to lower injured people 400 feet. The racks provided smooth control and prevented rope overheating.
Industrial Use
Window cleaners or bridge inspectors sometimes use rack descenders for long vertical access. Their ability to control descent speed and stop when needed is crucial for safety.
Statistical Data
According to the National Cave Rescue Commission, over 70% of deep cave rescues use rack descenders for mainline descent, thanks to their reliability and heat management.
Environmental And Rope Considerations
Rack descenders perform well on various ropes and in different environments.
- Wet ropes: The rack maintains friction even when ropes are muddy or slippery.
- Dirty ropes: Unlike devices with tight slots, racks do not clog easily.
- Thick ropes: Ideal for ropes over 10 mm diameter.
Rope Longevity
Using a rack descender generally increases rope lifespan. The device spreads friction, reducing local wear. However, improper threading or worn bars can still damage ropes.
Training And Certification
Many organizations require rack descender training for caving or rescue work.
- National Speleological Society (NSS) recommends hands-on practice.
- Certification: Many rescue teams include rack descender use in their certification tests.
Beginners should seek expert instruction before using rack descenders on demanding drops.
Frequently Asked Questions
What Is The Main Advantage Of A Rack Descender Over A Figure-eight?
The rack descender allows you to adjust friction while descending, making it safer for long drops. The figure-eight has fixed friction, which can lead to uncontrolled speed or rope overheating.
Can I Use A Rack Descender For Climbing?
Rack descenders are not usually used in sport climbing. They are best for rappelling and vertical caving, where long descents and heavy ropes are common.
How Do I Know If My Rack Descender Is Worn Out?
Check the bars for grooves, sharp edges, or cracks. Inspect the frame for bends or cracks. If any part is damaged, replace it before your next descent.
Is A Rack Descender Safe For Wet Or Muddy Ropes?
Yes. The rack descender performs well on wet or dirty ropes. The multiple bars create friction even when ropes are slippery, making descents safer.
Where Can I Learn More About Rack Descenders?
For deeper information, visit the Rack Descender Wikipedia page.
Final Thoughts
The rack descender is a proven tool for anyone needing safe, controlled descents on rope. Its adjustable friction, heat management, and compatibility with tough environments make it a favorite among cavers, rescuers, and rope professionals. By understanding its design, proper use, and maintenance, you can enjoy safer vertical adventures.
Always practice, inspect your equipment, and seek expert guidance when trying new techniques. With the right knowledge and care, the rack descender will help you explore new depths and heights with confidence.
